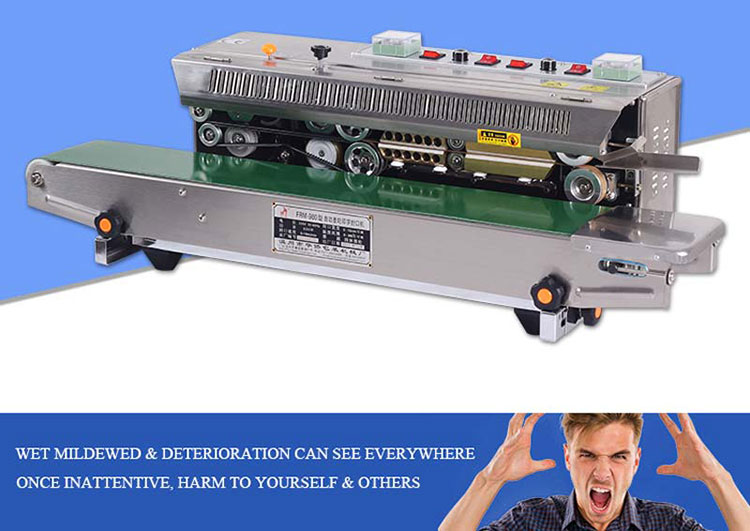

Frm 980 Sealing Machine High-Efficiency & Perfect Ink Printer
Applicable To A Wide Range, Competent In Major Industries
Really Applicable To All Sectors Sealing Machine Can Be W'idely Used In Food, Medicine, Cheniicals, Household, Seed And Other Industries
Electronic Constant Temperature Control, Stepless Speed Regulation
Can Seal Different Variety Of Material Plastic Bags

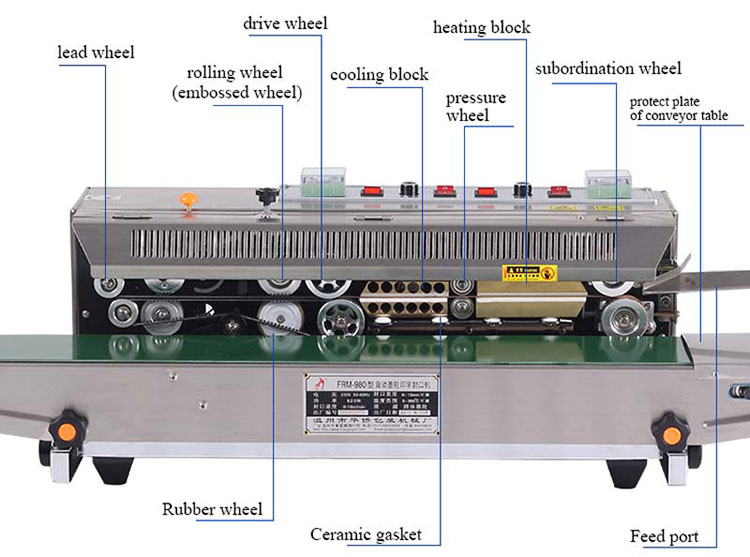

The Working Principle Of Sealing Machine
WHen It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.
The Product Is Sealed And Packaged To Reduce Product Wear And Tear
Sealed Packaging Products Look Beautiful, Clean And Tidy Dust, Moisture, Anti-Daniage, Easy Handling And Storage Products

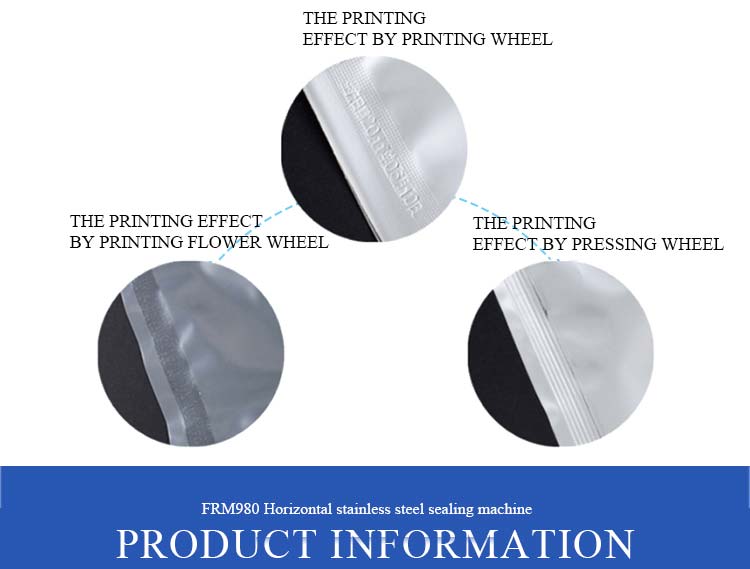

Different sealing effects it can be printed on different Dates
This machine is equiped with embossing wheel and printed seal printing.writing clear,beautiful

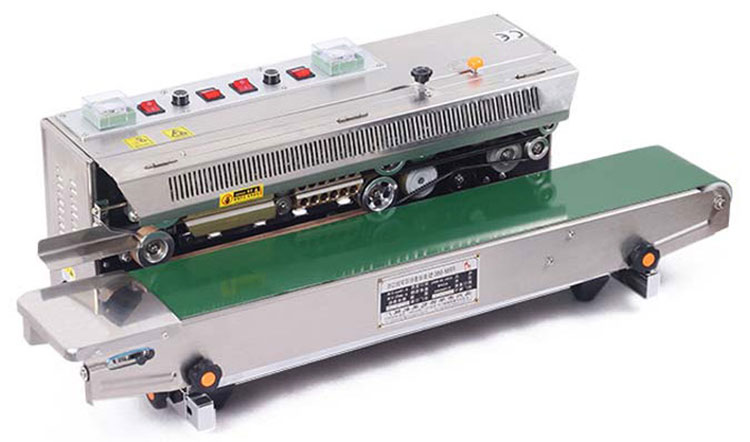

Kunba Frm-980w Horizontal Stainless Steel Sealing Machine
Technology Parameters
|
Model |
Frm-980w |
Temperature Range |
2-250 ℃ |
|
Voltage |
Ac200-240/150hz |
Printing Letters |
20 Granule |
|
Power |
620w |
Conveyor Loading |
＞5kgs |
|
Sealing Speed |
0-24m/min |
Shipment Dimension |
960x420x365mm |
|
Sealing Width |
6-10mm |
Gross Weight |
30kg |
|
Ffifigsfsflm |
0.02-0.80mm |
|
|
Frm980 horizontal bag sealing machine
Product Details
|

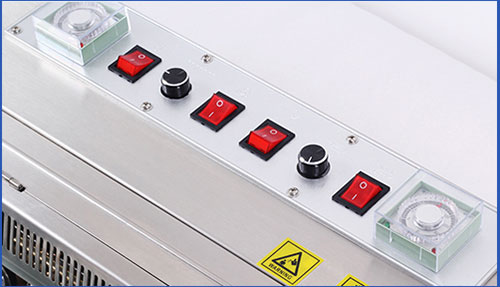

01.Simple Operation Panel Simplepanelsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Adjust And Easy To Operate. |
|
|

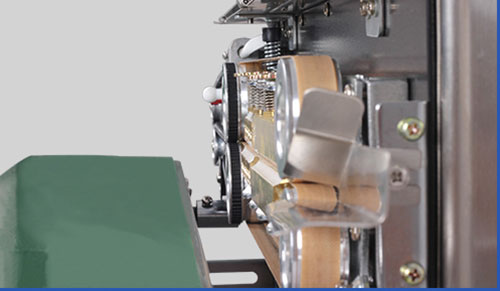

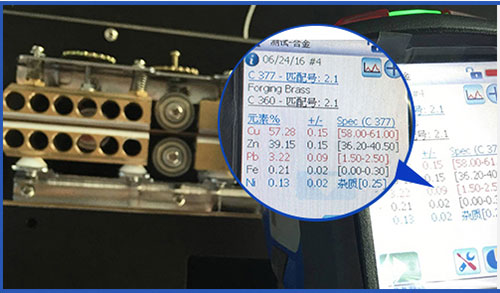

02. Sealing Parts H59 Brass With Bold Widening Heating Blocle High Strength Is Not Eas}R To Deformation, Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body. Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful |
|
|
03.Automatic Printing By Ink Wheel Selection Of Imported Matedals Ink Whee], Ink Wheel Will Be Automatically Run Alter The Optical Eye. The Shading Of Ink-Print Can Be Adjustable, The Position Of Ink-Plinting Words Can Be Adjustable, Simple And Easy To Opetate. |
|
|

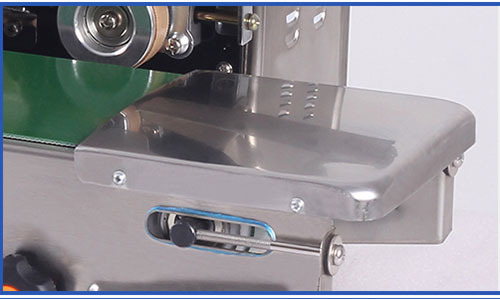

04.Conveyor Tab Le Guard Adopt Stainless Steel Material Without Comer Anti-Knock Damage,More Humane, More Secure. |
|
|

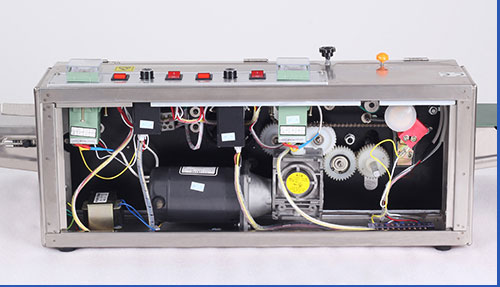

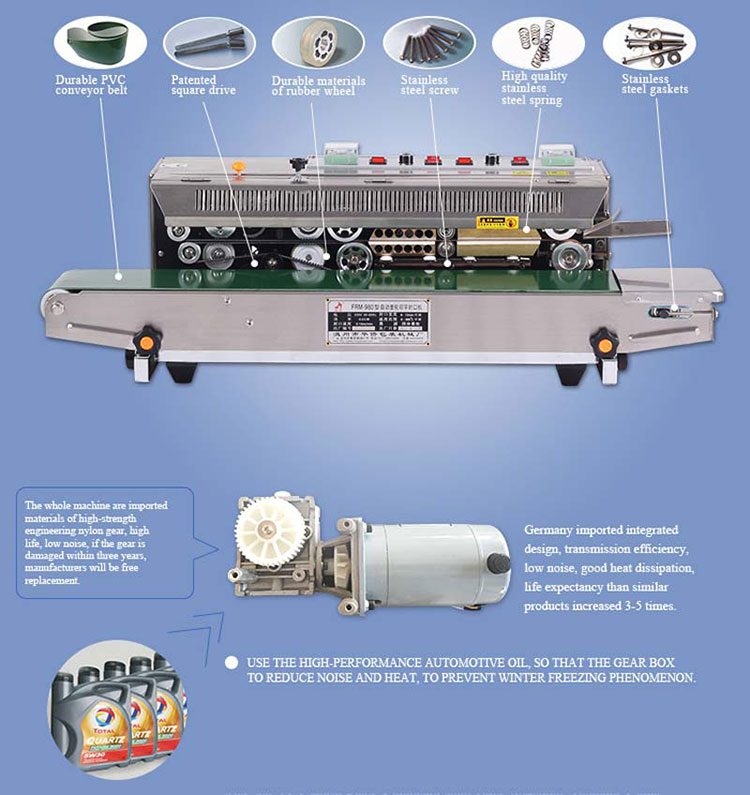

05.Integration Of The Motor & Gearbox Adopt The Design Principle Of German Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Service Life Is 3-5 Tim Higher Than Similar Products. |
|
|

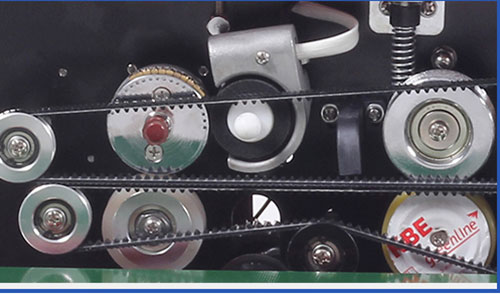

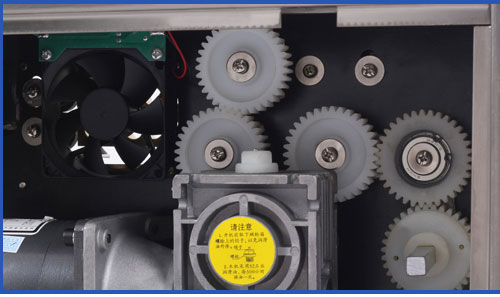

06.Imported Industrial Nylon Gear Imported From The Netherlands Industrial Nylon Gear, Smooth Transmissiom No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime-) |
|
|

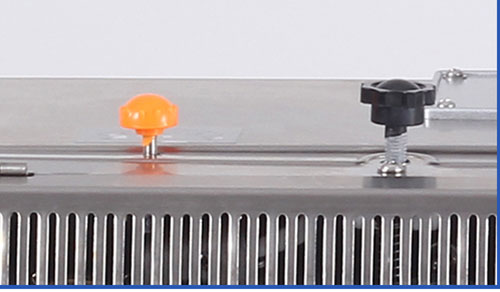

07.The Pressure Of Embossed Roller Ink Wheel Can Be Adjustable The Embossed Depth And Ink Shades Can Be Adjusted According To The Actual Situation |
|
|

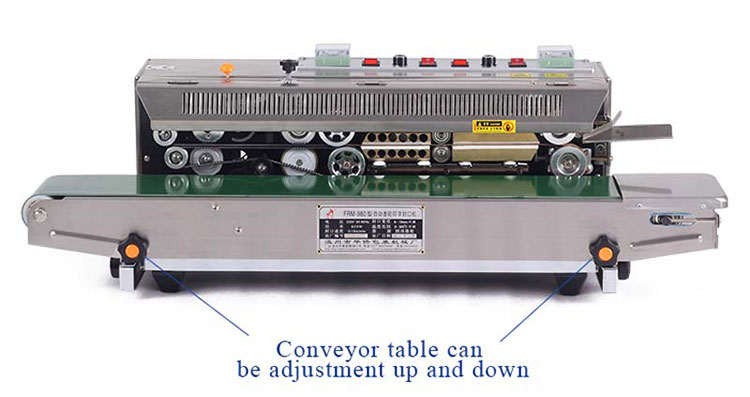

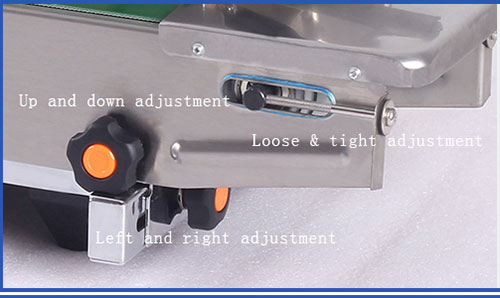

08.Table Can Be Adjusted Up And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efliciency. |
|
|
09.Fine Workmanship The Mechanical Transmission Accurately Fits The Heating Block,Sealing Effect Is Bettet. |
|
