FRM 980 bag sealing machine

FRM 980 bag sealing machine High-Efficiency Perfect Ink Printer

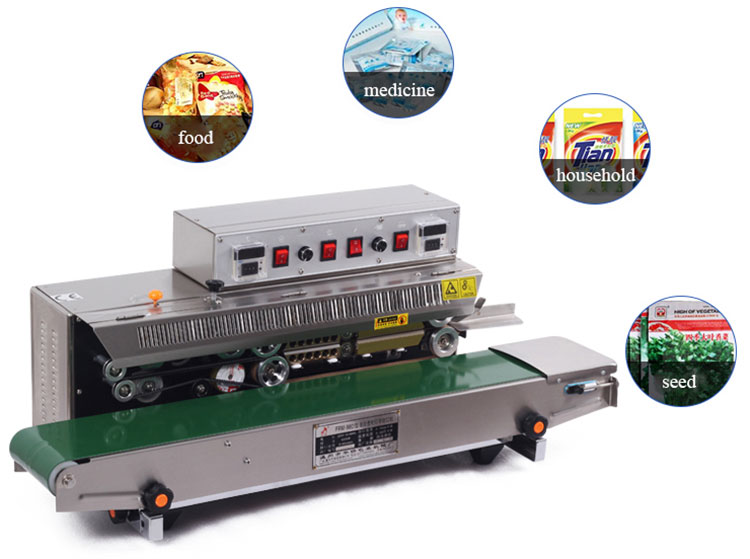

Applicable To A Wide Range, Competent In Major Industries Really Applicable To All Sectors Sealing Machine Can Be W'idely Used In Food, Medicine, Cheniicals, Household, Seed And Other Industries

Electronic Constant Temperature Control, Stepless Speed Regulation Can Seal Different Variety Of Material Plastic Bags

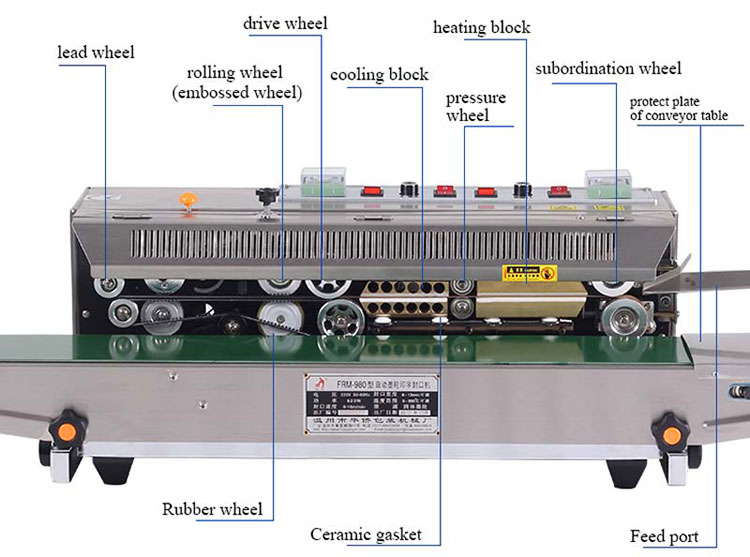

The Working Principle Of Sealing Machine

W’Hen It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.

The Product Is Sealed And Packaged To Reduce Product Wear And Tear Sealed Packaging Products Look Beautiful, Clean And Tidy Dust, Moisture, Anti-Daniage, Easy Handling And Storage Products

Frm980 Horizontal Stainless Steel Sealing Machine
Product Information

Kunba Frm-980w Horizontal Stainless Steel Sealing Machine
Technology Parameters

Model	Frm-980w	Temperature Range	2-250 ℃
Voltage	Ac200-240/150hz	Printing Letters	20 Granule
Power	620w	Conveyor Loading	＞5kgs
Sealing Speed	0-24m/min	Shipment Dimension	960x420x365mm
Sealing Width	6-10mm	Gross Weight	30kg
Ffifigsfsflm	0.02-0.80mm

Frm980 Horizontal Stainless Steel Sealing Machine
Product Details

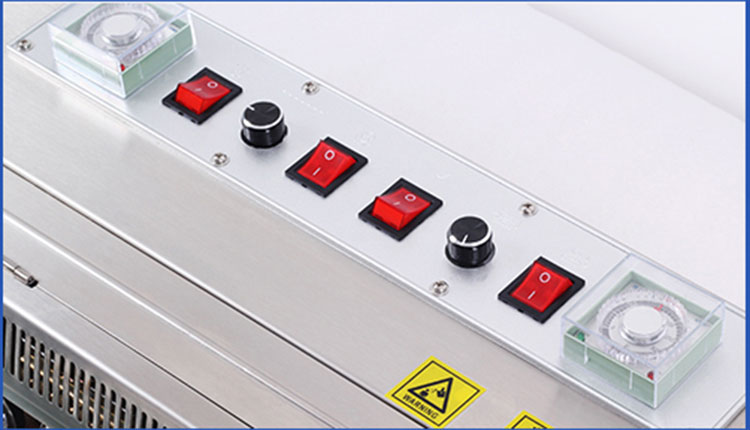

01.Simple Operation Panel

Simplepanelsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Adjust And Easy To Operate.

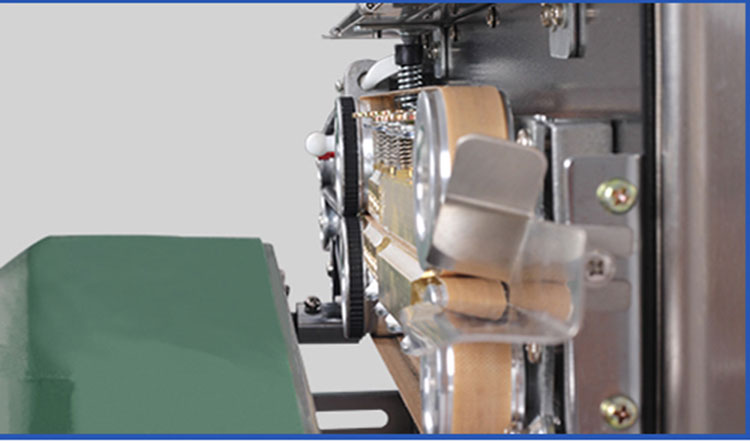

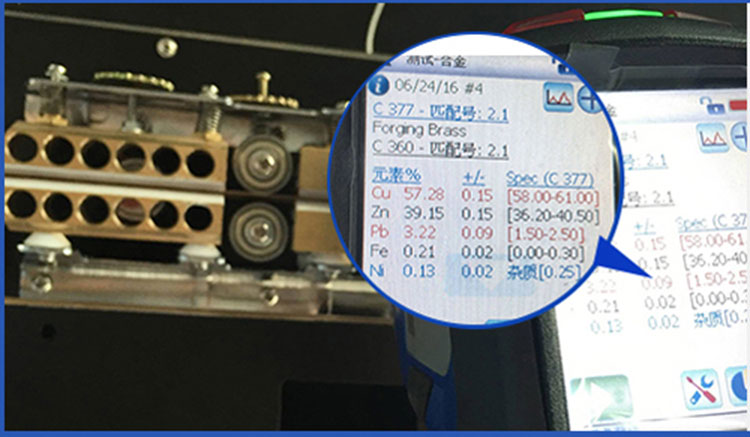

02. Sealing Parts

H59 Brass With Bold Widening Heating Blocle High Strength Is Not Eas}R To Deformation, Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body. Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful

03.Automatic Printing
By Ink Wheel

Selection Of Imported Matedals Ink Whee], Ink Wheel Will Be Automatically Run Alter The Optical Eye. The Shading Of Ink-Print Can Be Adjustable, The Position Of Ink-Plinting Words Can Be Adjustable, Simple And Easy To Opetate.

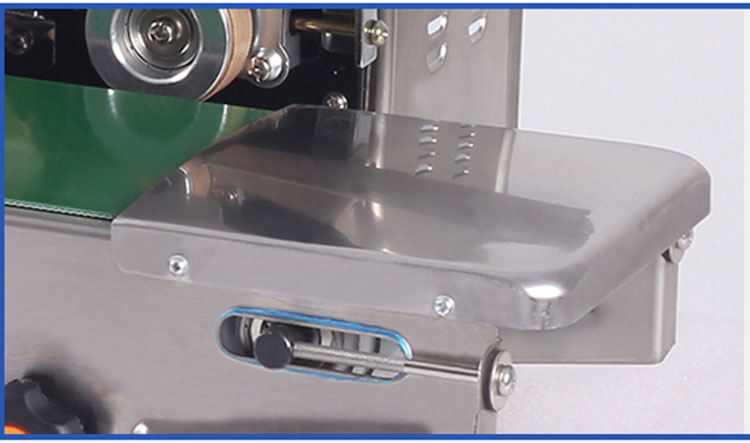

04.Conveyor Tab Le Guard

Adopt Stainless Steel Material Without Comer Anti-Knock Damage,More Humane, More Secure.

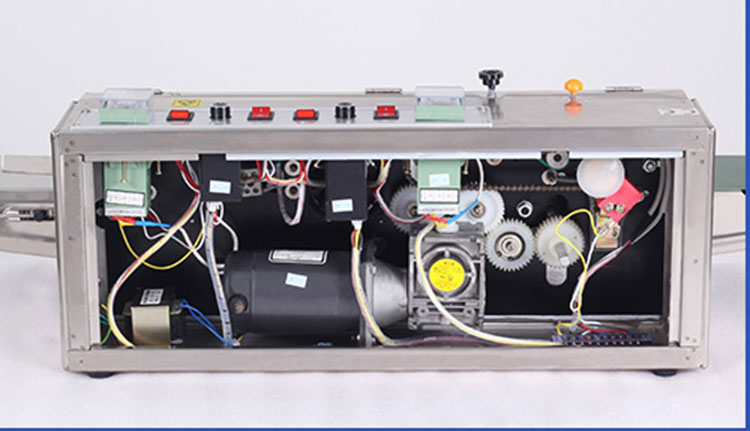

05.Integration Of The Motor &Amp; Gearbox

Adopt The Design Principle Of German Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Service Life Is 3-5 Tim Higher Than Similar Products.

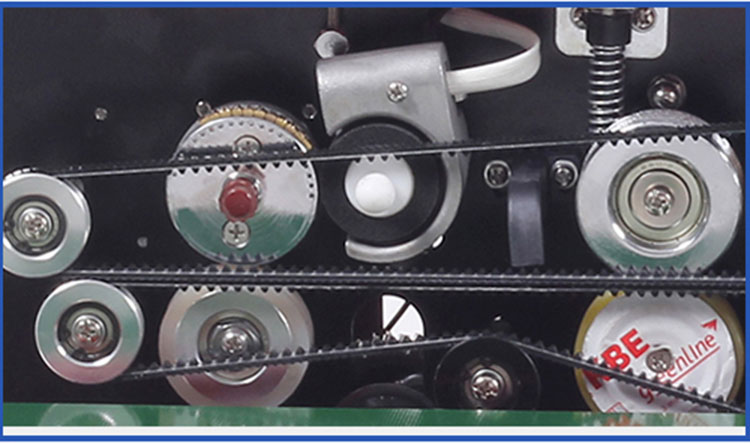

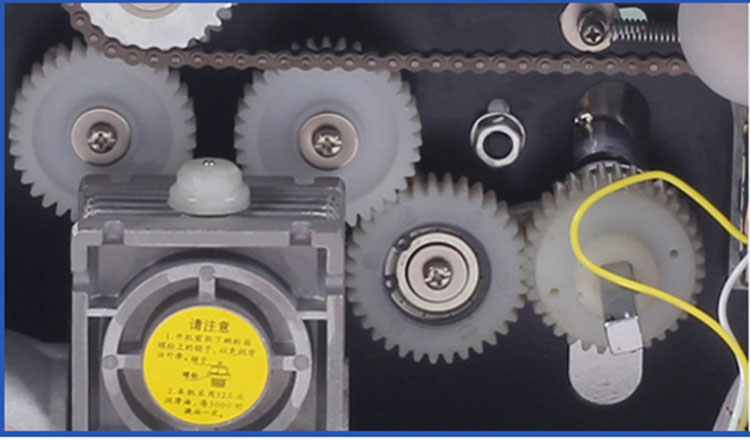

06.Imported Industrial Nylon Gear

Imported From The Netherlands Industrial Nylon Gear, Smooth Transmissiom No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime-)

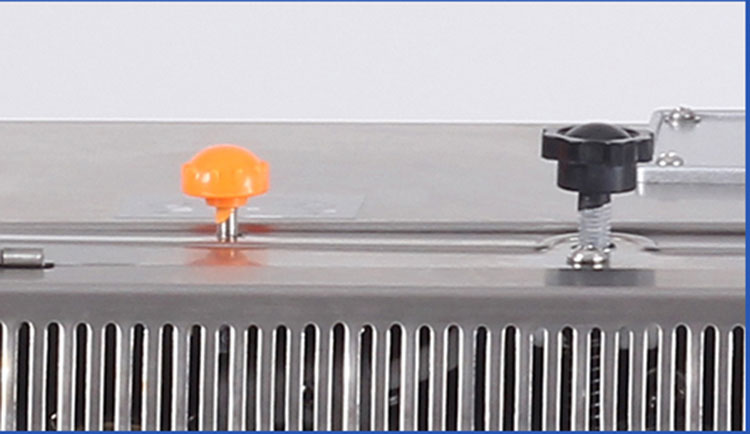

07.The Pressure Of Embossed Roller Ink Wheel Can Be Adjustable

The Embossed Depth And Ink Shades Can Be Adjusted According To The Actual Situation

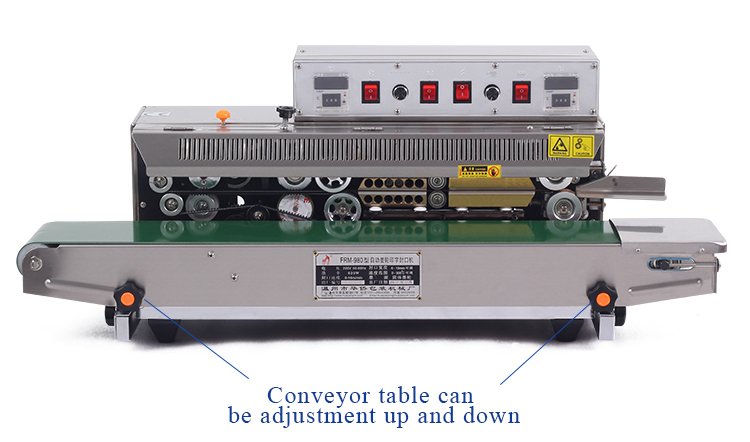

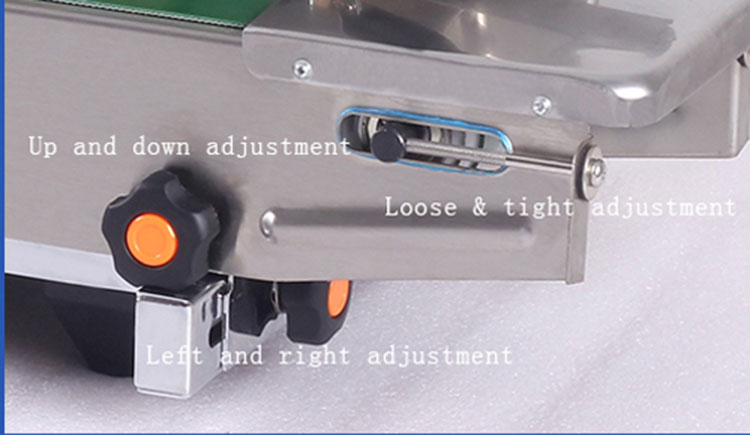

08.Table Can Be Adjusted Up

And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efliciency.

09.Fine Workmanship

The Mechanical Transmission Accurately Fits The Heating Block,Sealing Effect Is Bettet.
